Hit and Miss Evaporative Four-stroke Horizontal Water-cooled Gasoline Engine Internal Combustion Engine 1.6CC Mini Engine Model
Hit and Miss Evaporative Four-stroke Horizontal Water-cooled Gasoline Engine Internal Combustion Engine 1.6CC Mini Engine Model
How to Start it?
Startup:
a. Ensure engine wiring is correct, connect the fuel line to the tank, and install three AA batteries (4.5V).
b. Fueling: Fill the fuel tank with 95# gasoline and add 4% lubricating oil. Rotate the flywheel on the right side of the engine (power switch side) clockwise several times to ensure the fuel mixture fully enters the cylinders and air is expelled from the fuel line.
c. Ignition: Turn on the power switch, then quickly spin the flywheel clockwise on the right side (power switch side) to start the engine.

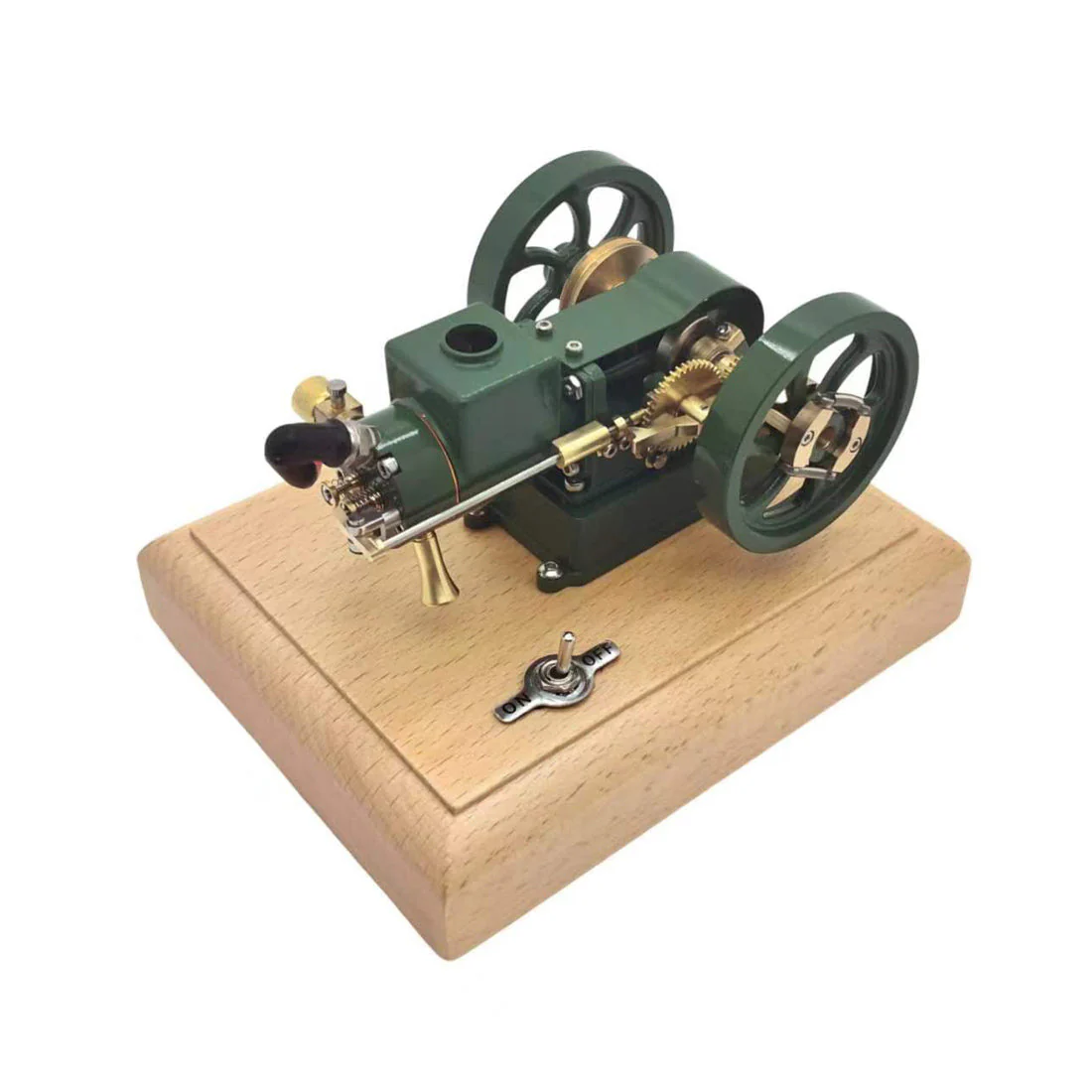

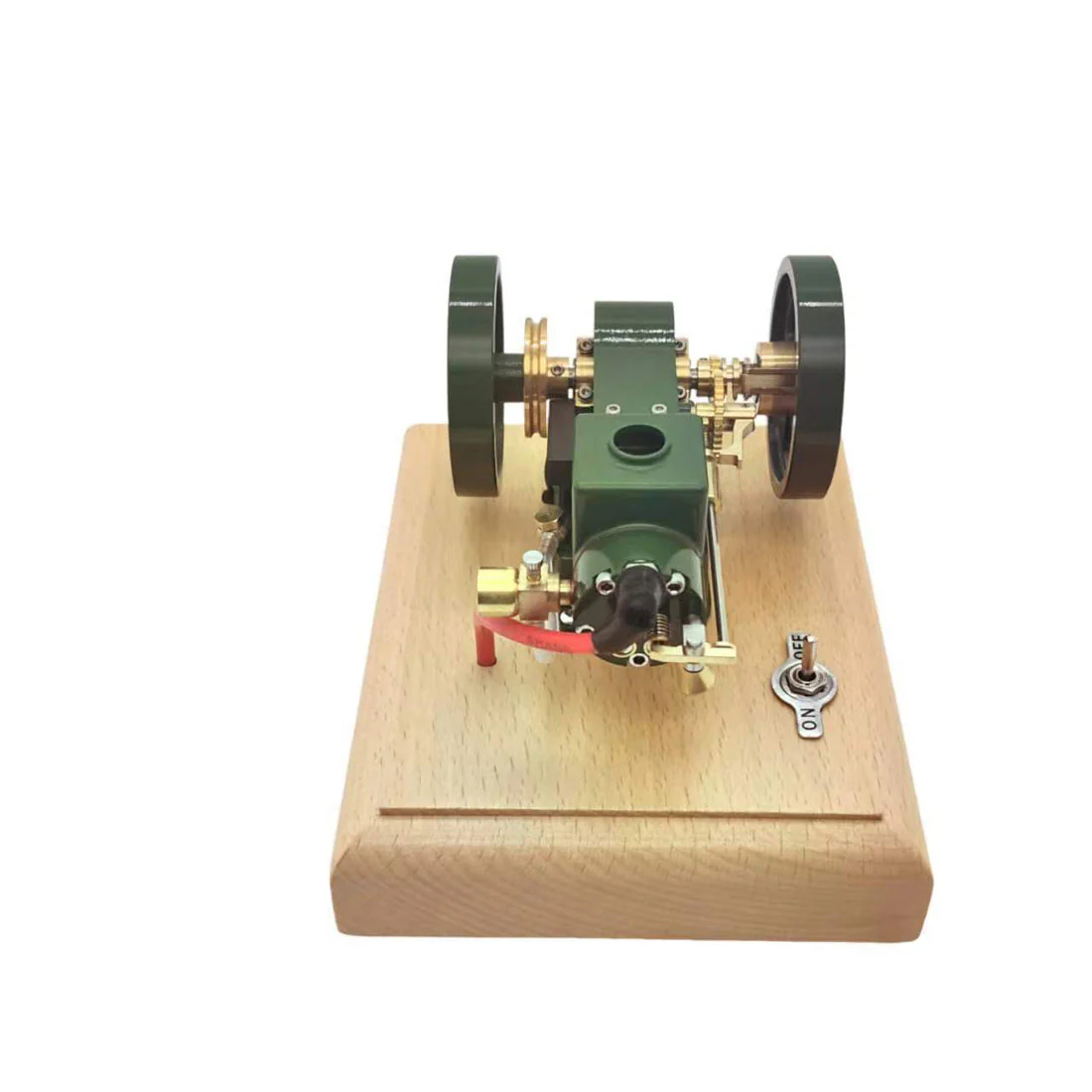

Miniature Design: This mini Hit and Miss engine comes with a flywheel speed limiter. Crafted from brass and stainless steel, it rests on a wooden base for easy display and operation. The vintage, intricate design is sure to captivate any engine model enthusiast.
The engine’s unique and exquisite design ensures stability and reliability. Premium materials and precision engineering result in excellent performance. This desktop model engine is simple to operate and offers endless fascination, showcasing the charm of mechanical operation.
Specifications:
Material: Brass/Stainless Steel/Bamboo
Item No: M17 Green Coating
Overall Dimensions: 150*120*95m
Engine Dimensions: 127*78*65mm
Wooden Base Dimensions: 150*120*30mm
Displacement: 1.6CC
Cylinder Diameter: 13mm
Stroke: 12mm
Supply Voltage of Ignition: 4.5V (3*AA Batteries, Not Included)
Starting Mode: Manual/Electronic Drill Starting
Product Weight: 1100g
Product Dimensions: 15 x 12 x 9.5cm
Package Dimensions: 20 x 20 x 20cm
Package Weight: 1200g
Packing: Box
Ages: 16+
PACKAGE List:
Engine x 1
Instructions x 1
