RW Micro Brushless Generator LED Module DC 2.5 V-8 V Model Power Conversion Accessory for RW Series Steam Engine Models

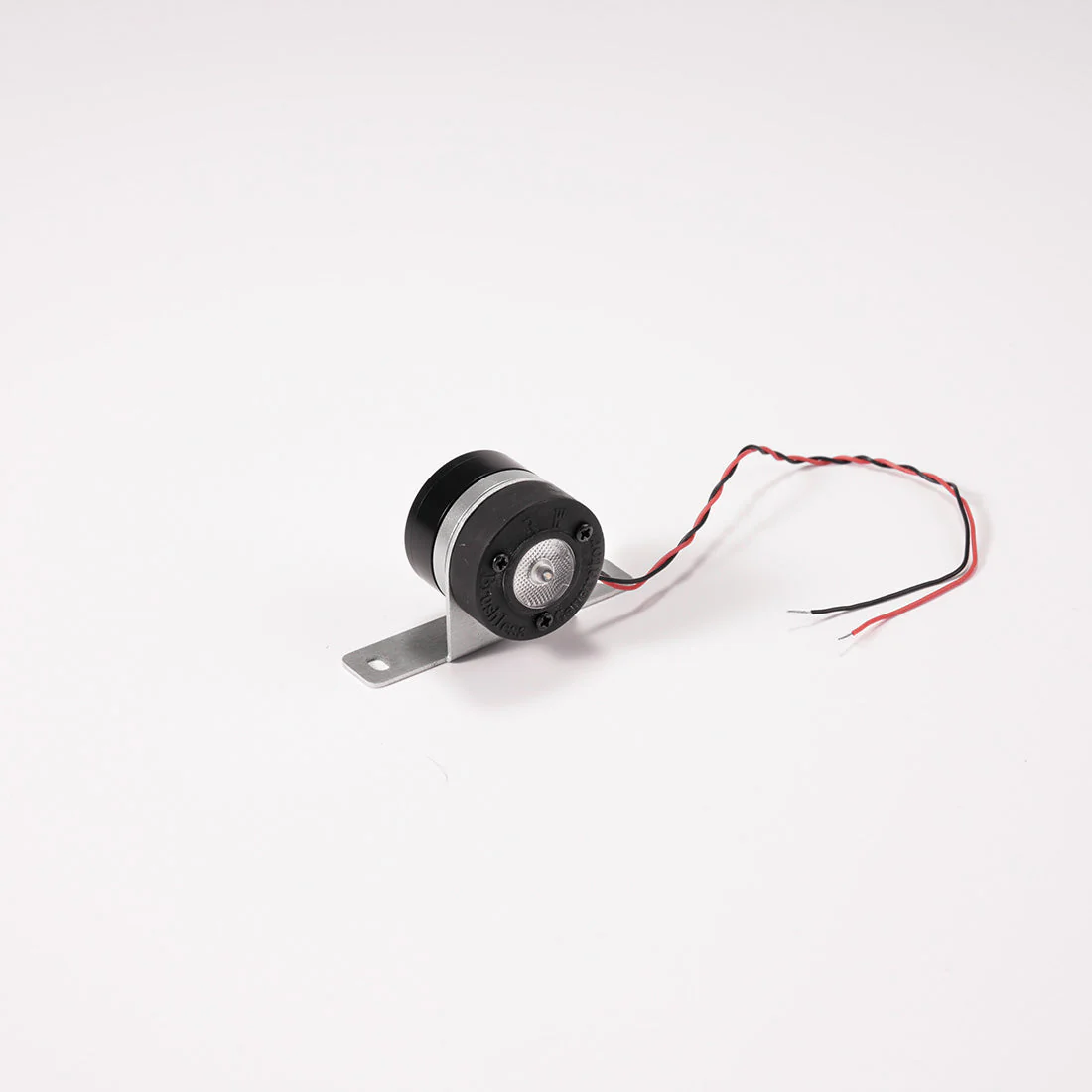

Product Name: Miniature Brushless Generator

Input Shaft Diameter: 4mm (Note: The maximum insertion depth of the output shaft is 15mm; exceeding this depth will damage the generator.)

Generator Power: 2W

LED Light Power: 0.2W

Output Voltage: DC 2.5V (1000RPM) - 8V (3000RPM)

Generator Operating Speed: 1000-3000 RPM

Maximum Speed: Must be below 3500 RPM; exceeding this speed will damage the generator.

Output Connector: MX1.25

Weight: 40 grams

Suitable Age: 16+

Packaging Method: Bagged

Package Contents: Generator set *1, Instruction manual *1.

Product Description:

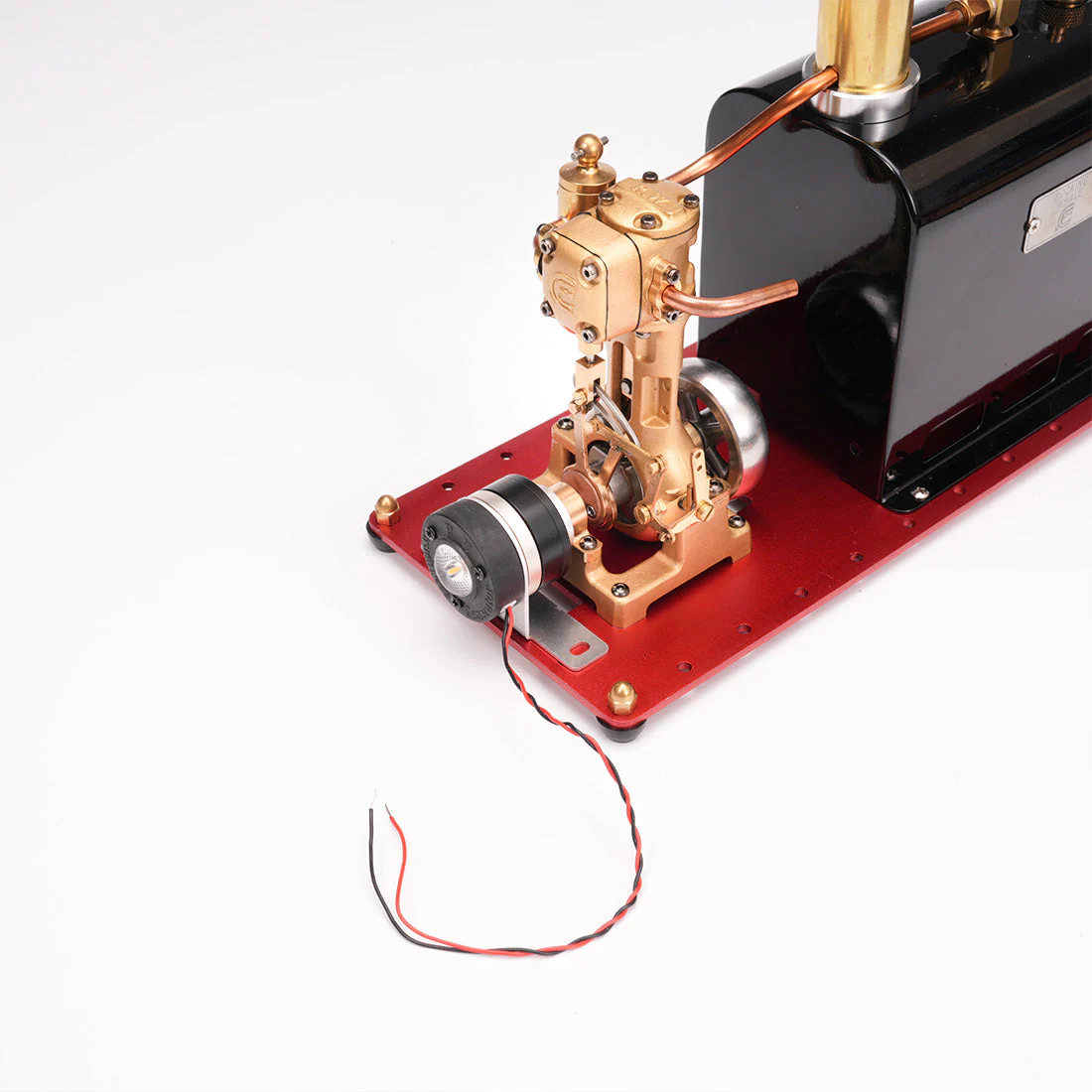

1. Perfectly compatible with RW series steam engine models: Specifically designed for RW series steam engine models, with a 4mm input shaft diameter and a maximum shaft insertion depth of 15mm (exceeding this depth will damage the generator). The mounting holes are precisely aligned with the model, allowing for stable installation without additional modifications, completely solving compatibility issues.

2. Efficient power generation and stable performance:  Utilizing brushless motor technology, it features less wear and tear and a longer lifespan, providing a stable 2W power output. The output voltage is DC 2.5V-8V, perfectly suited for small loads such as 0.2W LED lights. The brushless design also reduces friction, ensuring long-term stable operation.

3. Speed limit for safety and durability: Please strictly observe the speed limit during use; it must be below 3500 RPM. The operating speed range is clearly marked as 1000-3000 revolutions per minute. Safe operation of the steam engine avoids overspeed risks and effectively extends the generator's service life.

4. Lightweight design and easy installation: Weighing only 40 grams, it won't add excessive burden to the model. The MX1.25 output connector supports quick wiring, and with the included instruction manual, even model beginners can complete the installation in minutes, easily enjoying the fun of modifying and generating power projects.

5. Complete set and reliable quality: Ready to install and use upon arrival, suitable for steam model project builders. The robust brushless structure and precision craftsmanship make it a reliable choice for steam model enthusiasts, providing stable power for your creative projects.
