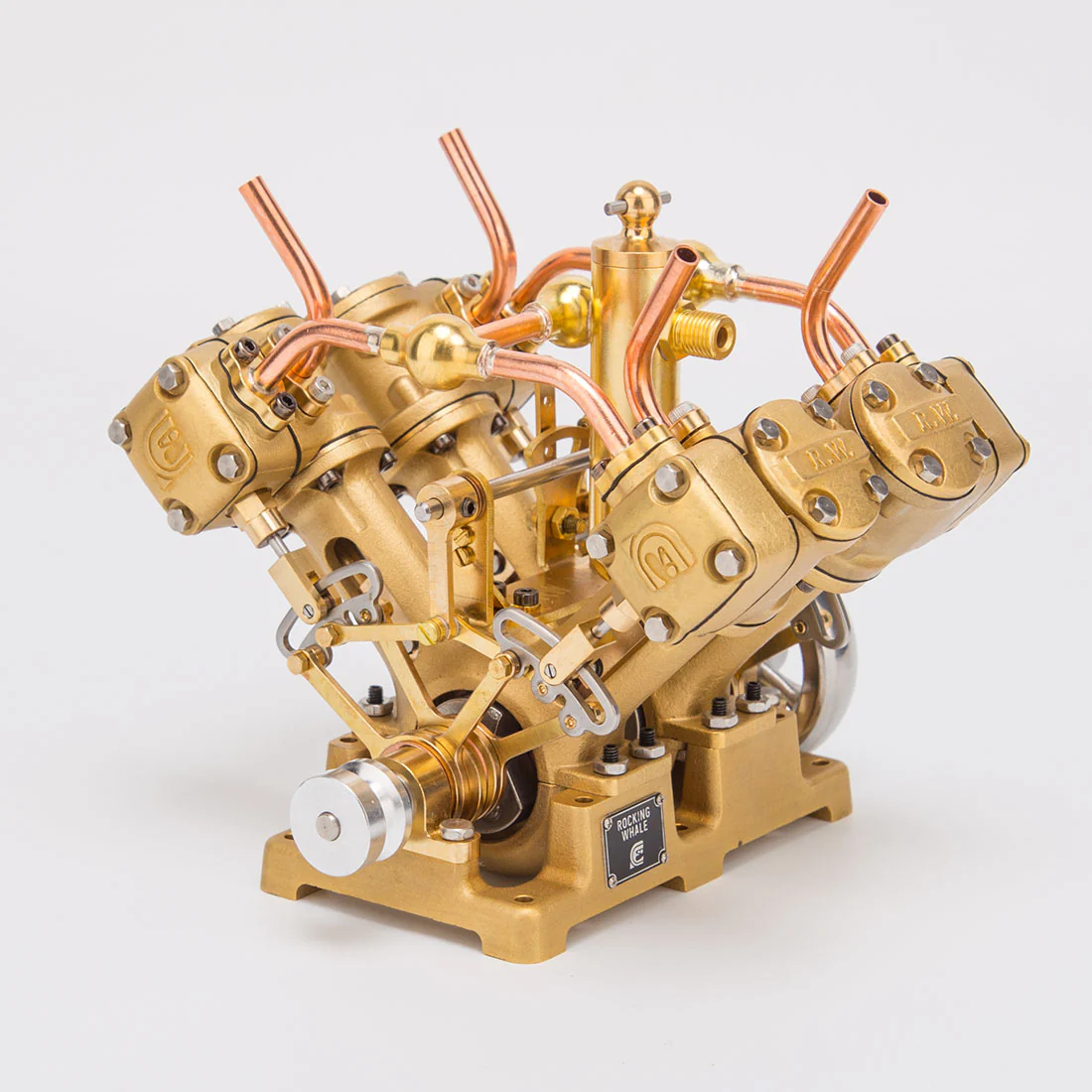

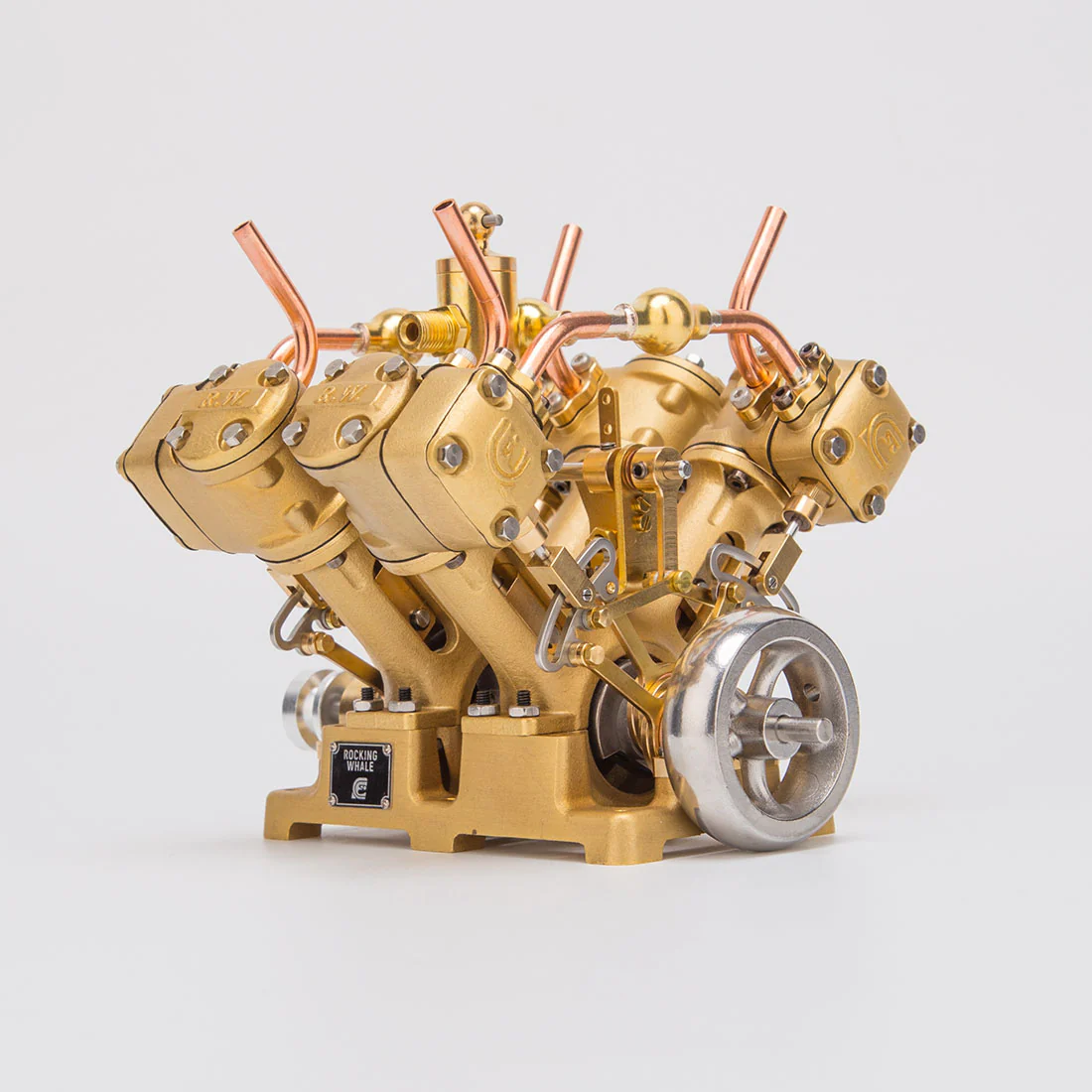

RW-V4 Mini V-Shape 4-Cylinder Reciprocating Steam Engine Model for 90-150cm Boat or Ships (Forward and Reverse Rotation/Without Boiler)
RW-V4 Mini V-Shape 4-Cylinder Reciprocating Steam Engine Model for 90-150cm Boat or Ships (Forward and Reverse Rotation/Without Boiler)
Product Information:
Model: RW-V2
Material: brass + stainless steel
Color: as shown in the picture
Size: 122*117*105mm
Weight: 1210g
Displacement: 12cc (1.5cc*2*4)
Bore: 12.2mm
Stroke: 12.7mm
Maximum speed: 2800rpm
Maximum torque: 2000g/cm
Power: 0.05hp
Pressure: 2 kg/cm²
Suitable boat size: 90-150cm
Product Features:
1, peak design, compact and powerful: as the top product of RW series, it adopts a unique V-shaped four-cylinder structure, with coaxial linkage of two rows of cylinders, a perfect combination of space utilization and power output, suitable for industrial equipment and high-end model making scenarios with stringent requirements on space and performance.
2, precision upgrades, stable and reliable: compared with the two-cylinder model, the welding rocker arm is upgraded to a CNC rocker arm, and the commutation shaft is supported by a new copper sleeve bearing, which is combined with the die-cast brass body, stainless steel cylinder liner, and high-precision CNC machined parts to further optimize the commutation structure and ensure smooth and reliable operation.
3, excellent performance, power surging: V-shaped four-cylinder layout brings ultra-smooth running experience, high torque, sufficient power, as smooth as an electric motor, torque fluctuations are extremely small, to meet the power needs of high loads, whether it is to drive a large-scale model ship, precision mechanical devices, or as a power teaching demonstration, the performance of the performance is far more than that of similar products.
4, flexible control, two-way freely: equipped with a complete Stephenson valve, support for forward and reverse function, flexible switching direction of operation, to meet the needs of diverse operations, whether it is complex mechanical operation, or modeling scene changes, can be easily dealt with, greatly enhancing the use of efficiency.
5, stringent standards, quality assurance: each accessory is strictly tested and screened, carefully assembled and tuned by senior technicians, the original test run to ensure the best performance, from parts to the machine, all-round quality control, for professional users and high-end players to provide durable quality equipment.
Age: 16+
Packing list: V4 vaporizer * 1, manual * 1
